The future is here. Get ready for a revolution in RC motor control.

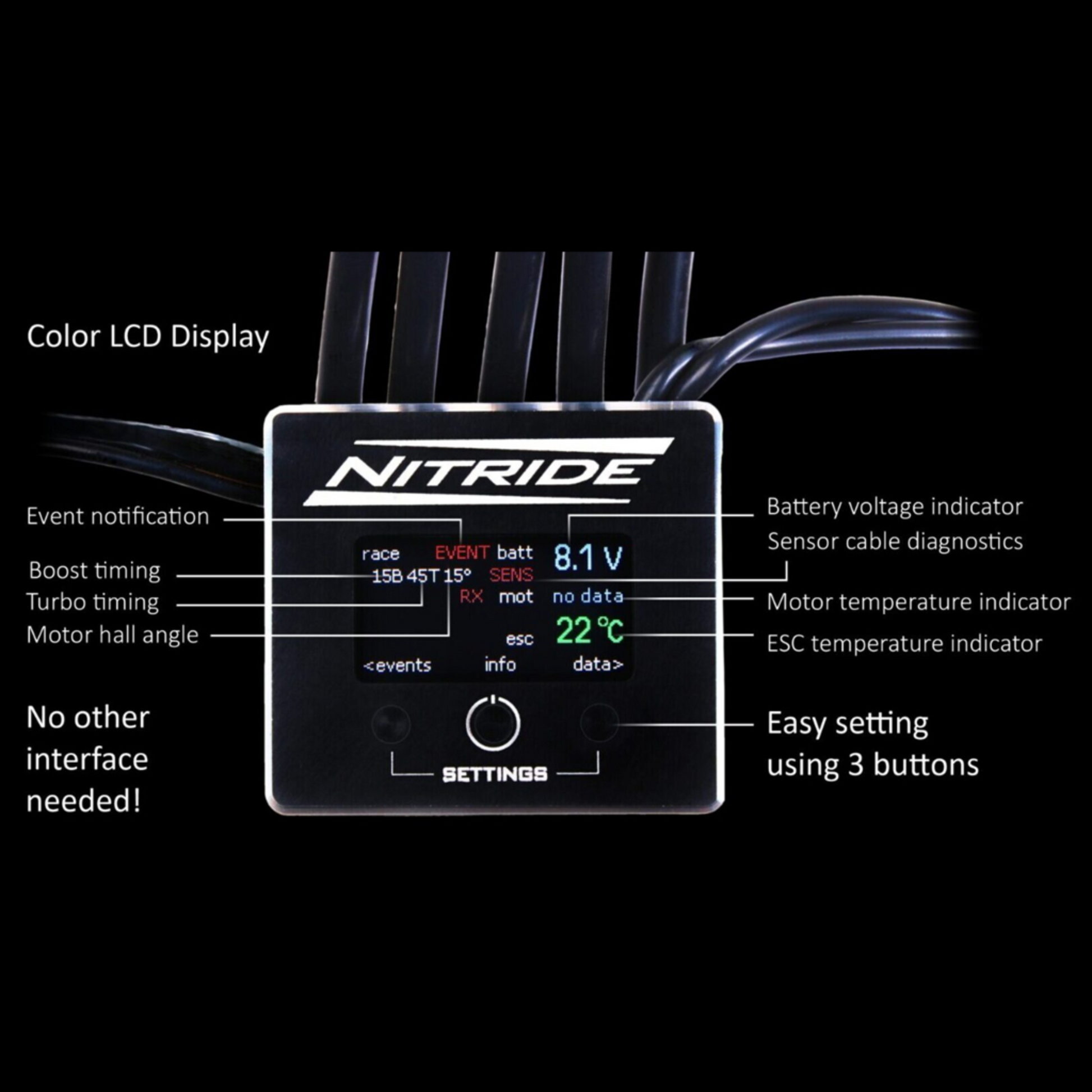

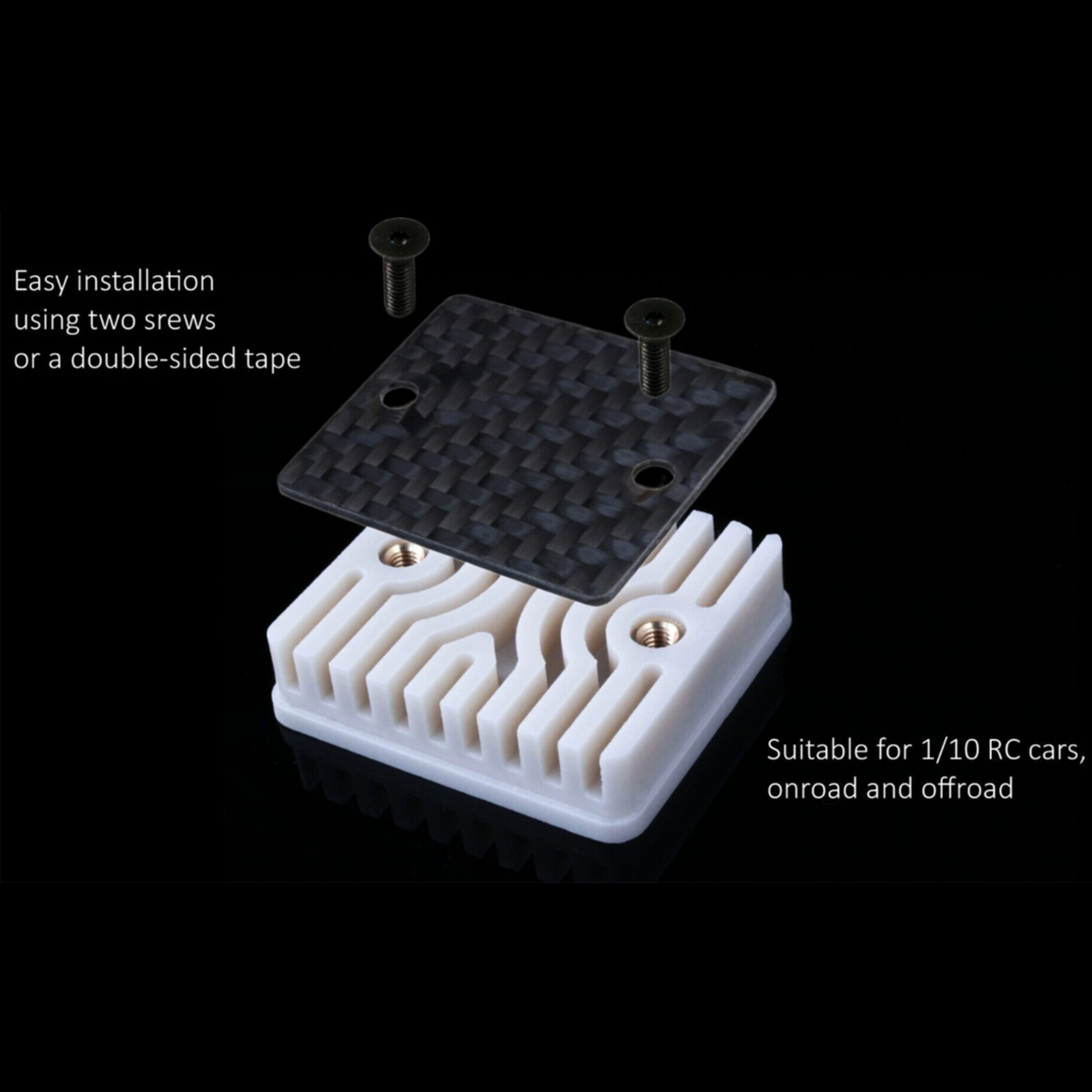

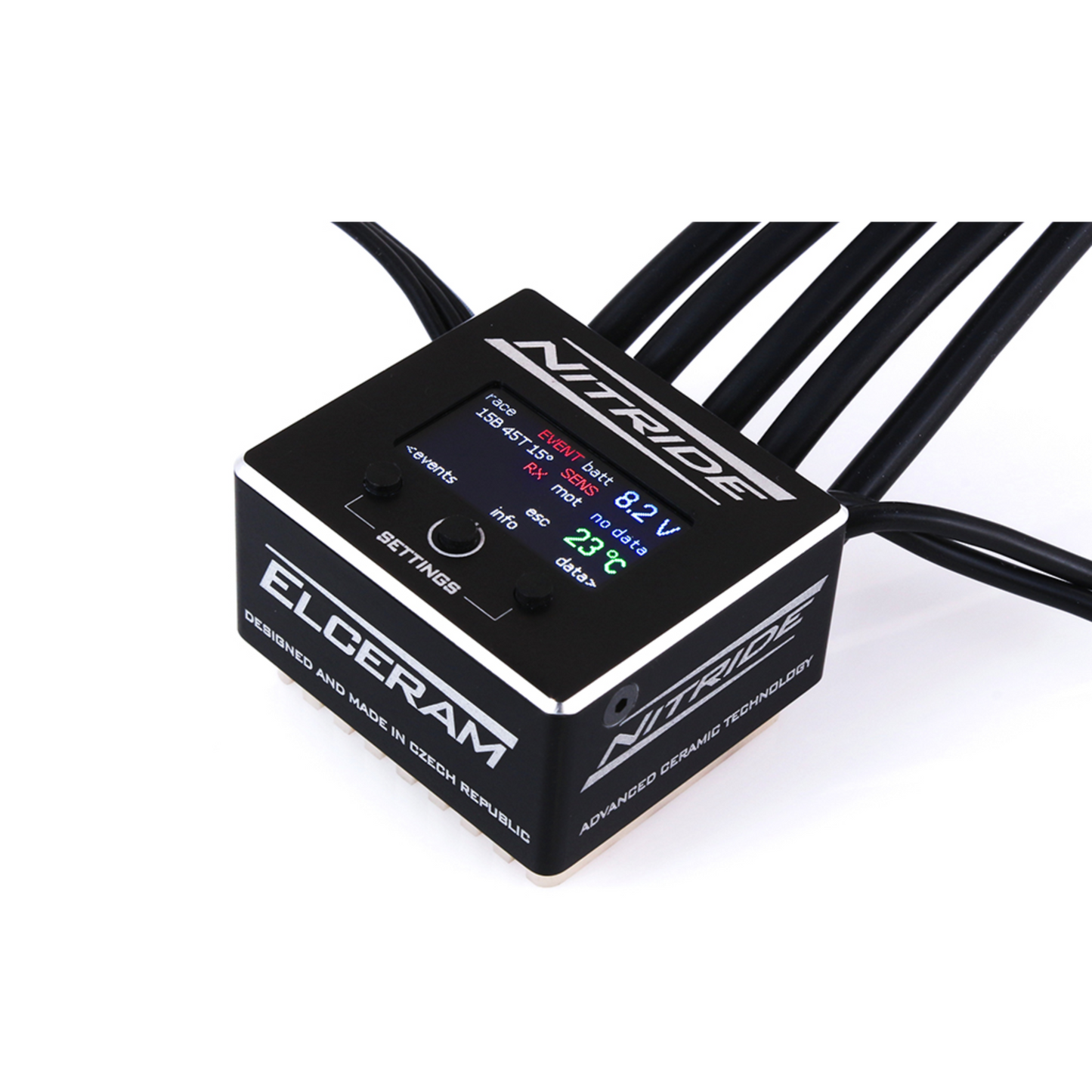

NITRIDE 1/10is a new generation electronic speed controller for BLDC motors. Using Advanced Cooling Technology based on Aluminium Nitride Ceramic cooler,NITRIDEis characterized by excellent thermal conductivity and at the same time it is the first ESC with TFT LCD colour display ever. These properties provideNITRIDErevolutionary features.

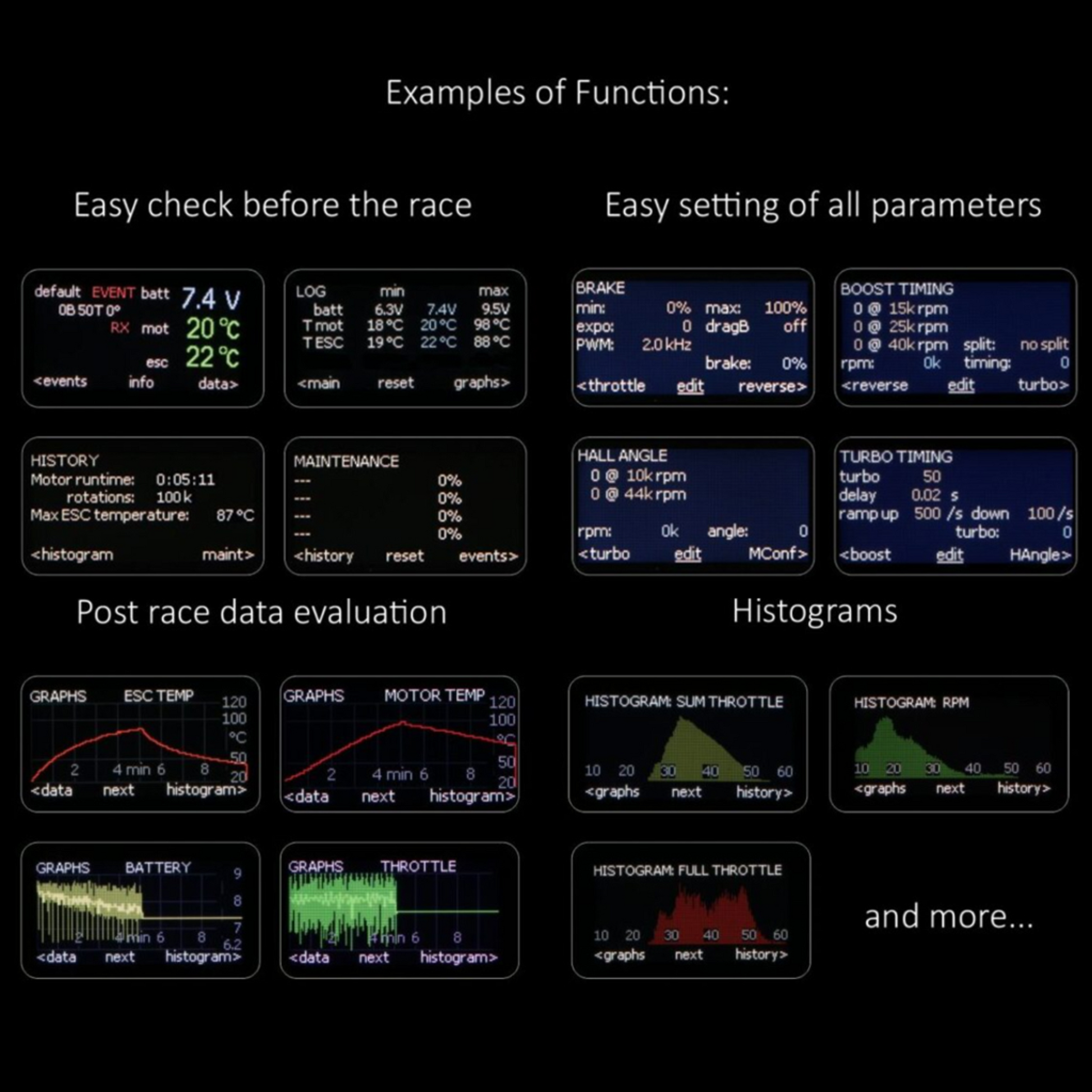

Functions:
Revolutionary easy Rx calibration.
Realtime monitoring: battery voltage, ESC and motor temperatures.
Self-diagnostic before the race: motor temperature, sensor cable, battery.
Post-race data evaluation.
Easy programming: throttle, brake, boost and turbo timing, hall angle and many other functions.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy check.
No programming interface needed.

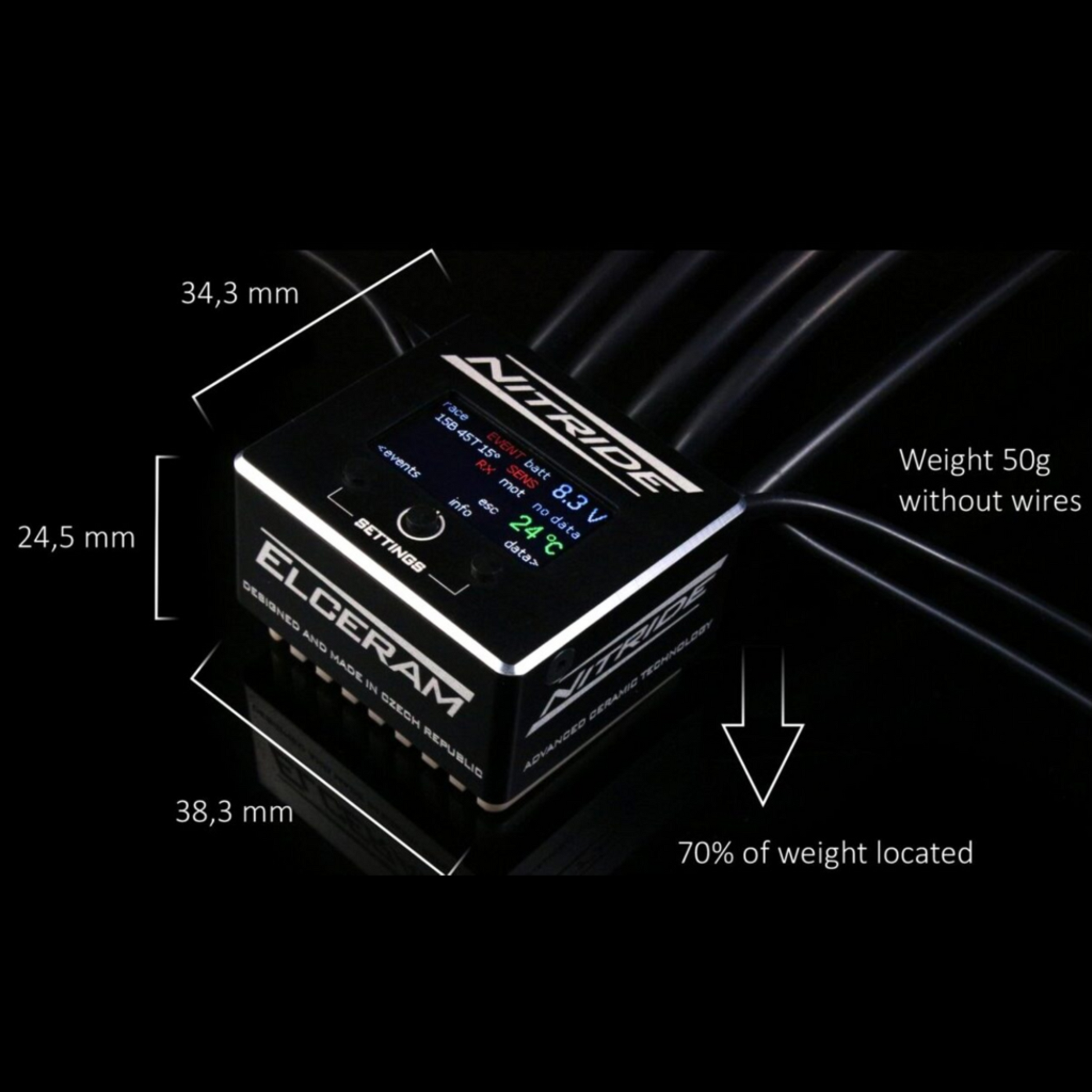

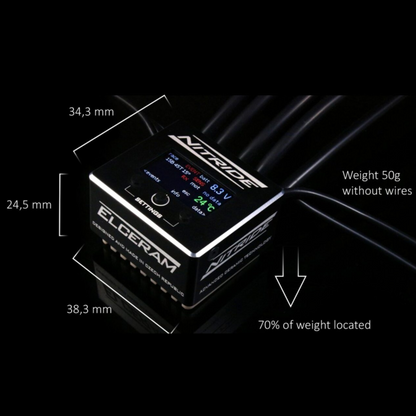

Size and weight:
Width: 34.3mm
Length: 38.3mm
Height: 24.5mm
Weight: 50 g without wires / 90 g with wires AWG13 - 180 mm.
Applications:
Motor: Brushless DC Motors
Vehicles: 1/10th Touring and Buggy, 1/10th drift, F1
