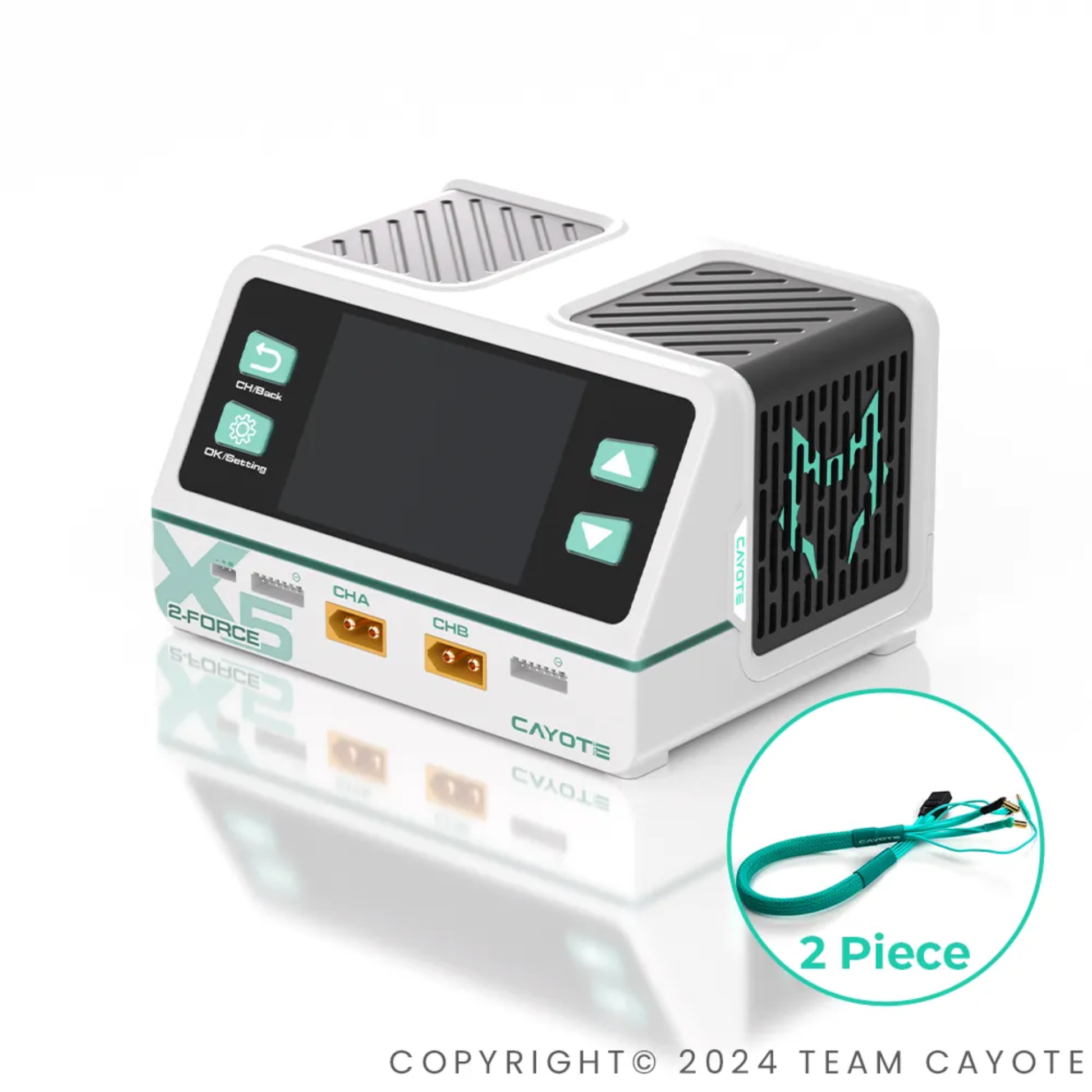

CAYOTE 2-Force X5 Charger (EU Version) incl. 2 XT90 Charging Leads

2-Force X5 - Engineered to Win The 2-Force X5 is a dual-channel smart charger for ambitious RC racers. Developed for maximum performance, high charging efficiency and versatile applications - from racing to the workshop.

Features: - Compact, lightweight and easy to transport - High-quality surface with scratch-resistant finish - Optimised for high-performance competition batteries - Fast, safe and efficient - Integrated balancer system (2A) for precise voltage regulation, better performance and longer service life - Dual-channel operation - independent circuits for simultaneous charging - Improved charging efficiency - Multi-mode functions - External discharge - 2-in-1 charging mode - Digital power supply - Versatile use from maintenance to racing set-up - Protection against overvoltage, Overcurrent, short circuit, reverse polarity and overheating - Intelligent cooling system with large air passage - Stable performance even under extreme conditions - Environmentally friendly sleep function - Servo test port for quick function and reaction tests - 12V DC output for accessories such as tyre preheaters, soldering irons etc. - USB-C firmware updates for continuous optimisation

IMPORTANT: Due to the housing design, the balancer cable plug can be plugged in in both directions. If the charger displays a balancer error when starting the charging process, the balancer cable plug must be turned round!

Technical data: Input voltage: AC 100-240 V, 50/60 Hz, max. 6.5 A / DC 12-30 V, max. 65 A Output voltage: DC 5-30 V Max. Charging power: AC 500 W / DC 700 W × 2 (With active 12V DC output, the AC power is limited to 400 W) Max. Charging current: 40 A (normal) / 55 A (synchronous) Max. Discharge power: internal 70 W × 2 / external 500 W Max. Discharge current: 8 A Balance current: max. 2 A per cell Supported battery types: LiPo / LiFe / LiIon / LiHV: 1-6S / NiMH: 1-18S USB-C output: 5 V / 2 A (10 W) XT60 DC output: 12 V / 100 W Servo test port: 5 V / 0.5 A (2.5 W) Display: 3.5 inch IPS, sunlight readable Operating temperature: -10 °C to +45 °C Storage temperature: -20 °C to +60 °C Weight: 1.5 kg Dimensions (LxWxH): 172 × 130 × 101 mm Housing: High-gloss polymer with scratch-resistant coating
